BIKE_SPEEDOMETER_1

Published:2009/7/10 3:21:00 Author:May | From:SeekIC

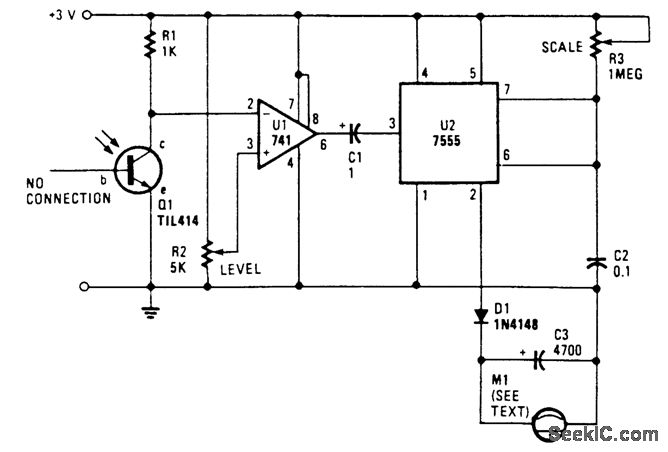

A TIL414 photo transistor senses reflection from a spoke-mounted reflector, generates a pulse, and sends it to U1 and U2, a monostable multivibrator, which drives meter M1.
