BLACK_LIGHT_INVERTER

Published:2009/7/15 4:14:00 Author:Jessie | From:SeekIC

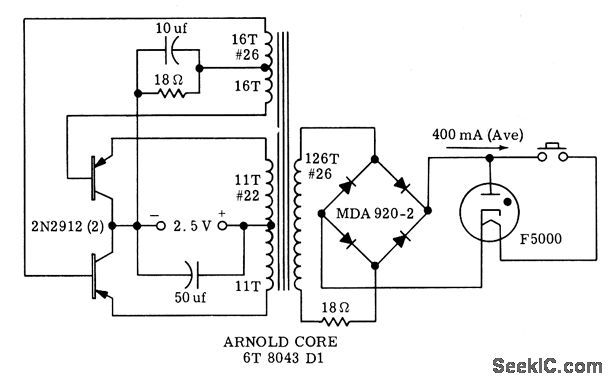

Operates from 2.5-v rechargeable battery and supplies 400 ma at 26 v to gas arc tube for portable ultraviolet lamp. Efficiency is 80%.-H. F. Weber, Low Voltage Inverter Features High Frequency Operation with High Efficiency, Motorola Application Note AN-174, Feb.
