Balance constant current output circuit

Published:2011/7/5 7:48:00 Author:Lucas | Keyword: Balance , constant current output | From:SeekIC

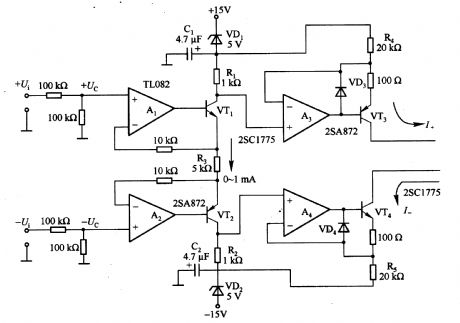

When the circuit has the external 0-10V voltage, you can choose a wide range of current, which is used as the part of the circuit of function generator, waveform generator. Al and A2 are the differential output circuit, which can change the unipolar input into a good balance circuit, and it can be used to change the 0-lOV input voltage into a 0-1mA output current. If Rl = R2, then the two ends of Rl, R2 will generat the same voltage, that is . It requires to generate the asymmetric waveform, so thatit need. It can also be used to generate a sawtooth waveform.
