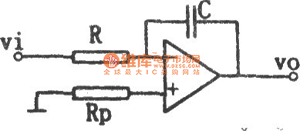

Basic inverting integrator circuit diagram

Published:2012/7/1 20:19:00 Author:Ecco | Keyword: inverting integrator | From:SeekIC

The integrator circuit consists of operational amplifiers and resistors, capacitors. The operational amplifier incircuit can be selectedaccording to the computing precision, but the circuit 's output voltage and current should not exceed the rated output value of the op amp, Vom and Iom.
