Published:2011/3/25 4:31:00 Author:Ecco | Keyword: Binary system, decimal system, decoding | From:SeekIC

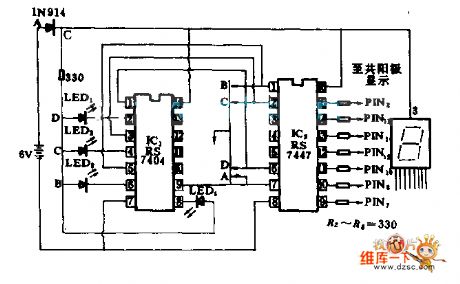

The PS7447 BCD code goes to 7 translators can provide 7 total anode figures display. With six inverter RS7404 and binary input indicator constituting of 4 LEDs means that the input takes binary types to represent decimal system 0~9; It's suitable for teaching experiment.
