Bipolar noise treatment method circuit diagram composed of ISO100

Published:2011/5/17 3:29:00 Author:Ecco | Keyword: Bipolar, noise treatment method | From:SeekIC

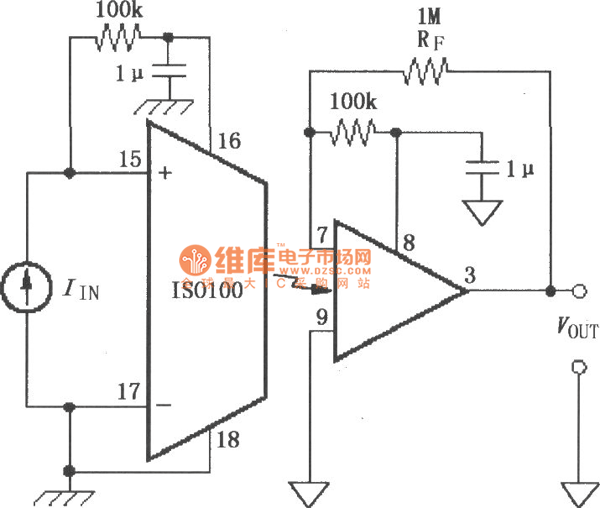

Bipolar noise treatment method circuit diagram composed of ISO100 is shown as the chart. In bipolar mode, the noise is primarily produced by the reference current source. The reference current source is added a low-pass filter to reduce the noise of the current source.
