Bipolar reversed circuit diagram composed of ISO100

Published:2011/5/10 20:58:00 Author:Ecco | Keyword: Bipolar , reversed | From:SeekIC

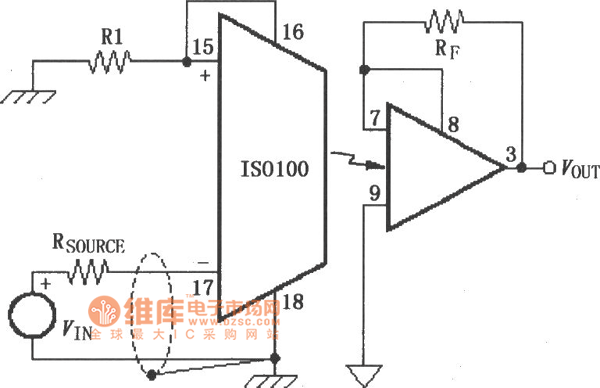

Bipolar reversed circuit diagram composed of ISO100 is shown as the chart. Comparing with unipolar reversed circuit, the connection method of pin 16 and pin 8 in bipolar reversed circuit is different. In bipolar reversed circuit, pin 16 and pin 15 are connected, pin 8 and pin 7 are connected, the other requirements are same to unipolar reversed circuit.
