CATHODE_COUPLED_TRIGGER

Published:2009/7/15 5:58:00 Author:Jessie | From:SeekIC

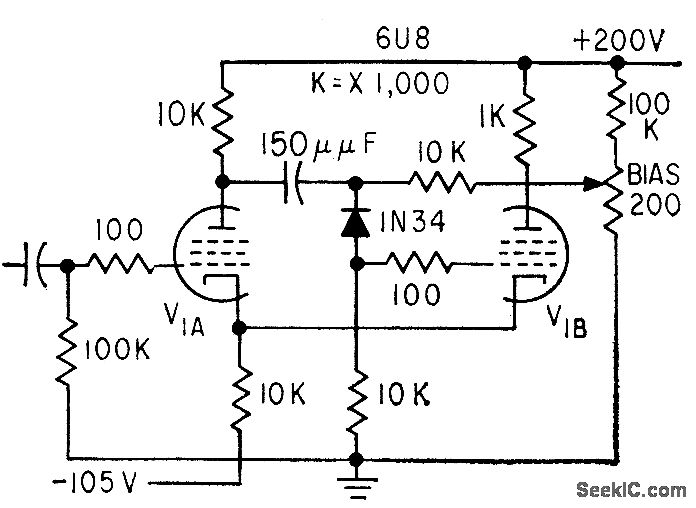

Series diode improves sensitivity for cathode-coupled monostable mvbr while giving stability of 5% for threshold levels of several mv. Second tube can be triode, permitting use of 6U8 triode-pentode in compact assembly.-M. M. Vojinovic, Series Diode Increases Multivibrator Sensitivity, Electronics, 32:17, p 90-91.
