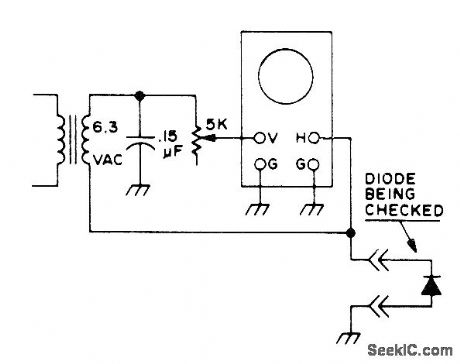

Simple oscilloscope setup checks and matches diodes. Sort diodes according to type, set potto givedesired trace size for good diode, then note relative sizes of traces obtained for unknown diodes. Reject diodes showing fuzz or ripple on oscilloscope trace.-Novice Q & A, 73 Magazine, March 1977, p 187.
