CHOKE_CONTROLLED_DIFFERENTIATOR

Published:2009/7/12 22:00:00 Author:May | From:SeekIC

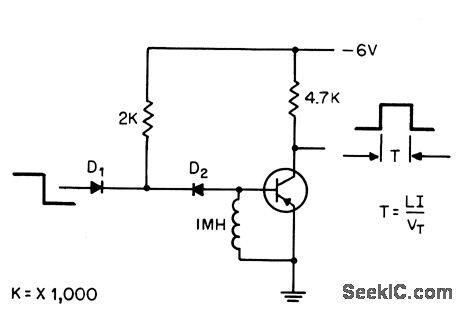

Uses inductance to control on time of transistor.Can also be used as staightforward pulse inverter,Input pulse is wider than output pulse.-W. M. Carey, Using Inducfive Control in Computer Circuits, Electronics, 32:38, p31-33.
