CHRISTMAS_LIGHT_DRIVER

Published:2009/7/9 23:23:00 Author:May | From:SeekIC

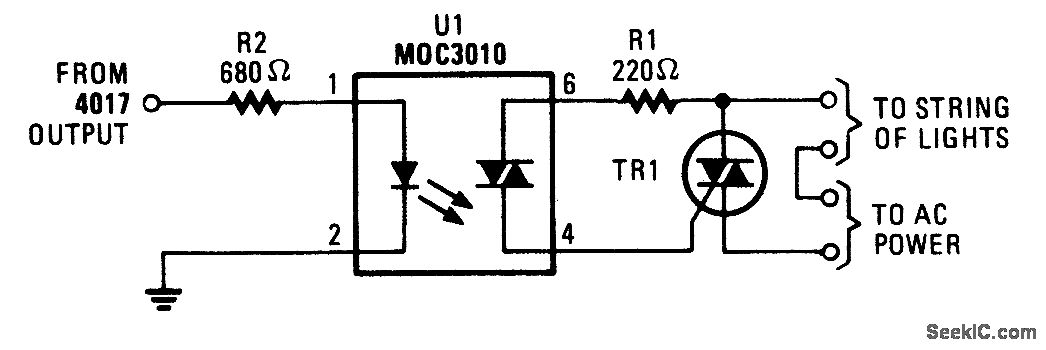

This circuit will enable a CM0S logic chip, such as a 4017 decode driver, to control a string of Christ-mas lights or other lighting. The triac should be rated at 200V and 3A or higher. The 4017 should be powered from at least 10V to ensure adequate drive to the optoisolator.
