COLLECTOR_TRIGGERED_FLIP_FLOP

Published:2009/7/23 21:28:00 Author:Jessie | From:SeekIC

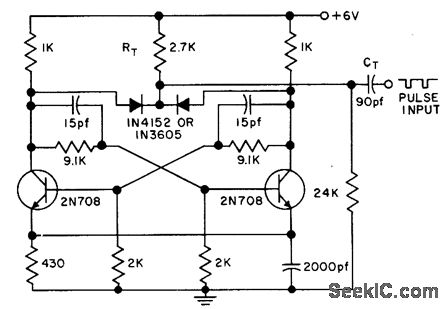

Diodes with basic flip-lop serve as steering circuit,with negative input pulse being used to trigger collectors. Maximum trigger rate exceeds 5 Mc with trigger amplitude from 4 to 12 v.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 197.
