COSINE_SINE_GENERATOR

Published:2009/7/15 3:14:00 Author:Jessie | From:SeekIC

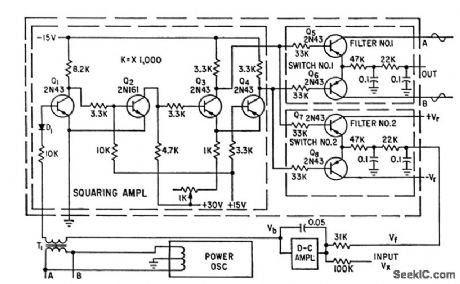

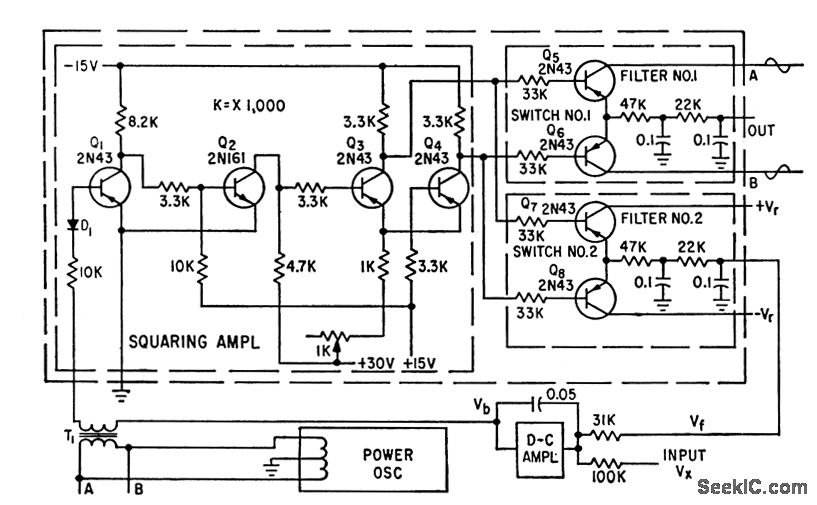

Based on fact that area under sine curve varies as cosine function. Input voltage is converted into pulse width that controls electronic switch to cut off one portion of sine wave. Resulting rectangular pulses are symmetrical with respect to positive peak of sine wave.-H. Schmid, Function Generator for Sines or Cosines, Electronics, 32:4, p 48-50.
