CRYSTAL_MONO_USING_INVERTERS

Published:2009/7/1 4:20:00 Author:May | From:SeekIC

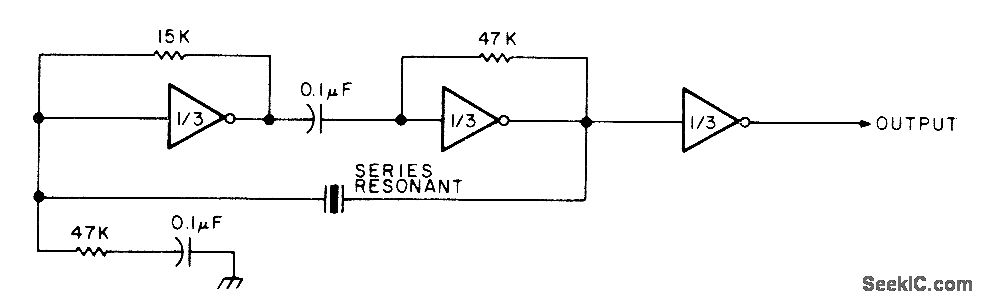

Uses all three sections of CD4049 triple inverter.with series-resonant crystal connection.supply can be in range of 3 to 15V. Serves as compact Iow-power portable RF oscillator having low battery drain.-W. J. Prudhomme, CMOS Oscillators. 73 Magazine. July 1977. p 60-63.
