CURRENT_SOURCE_AS_TRANSISTOR_LOAD

Published:2009/7/14 3:49:00 Author:May | From:SeekIC

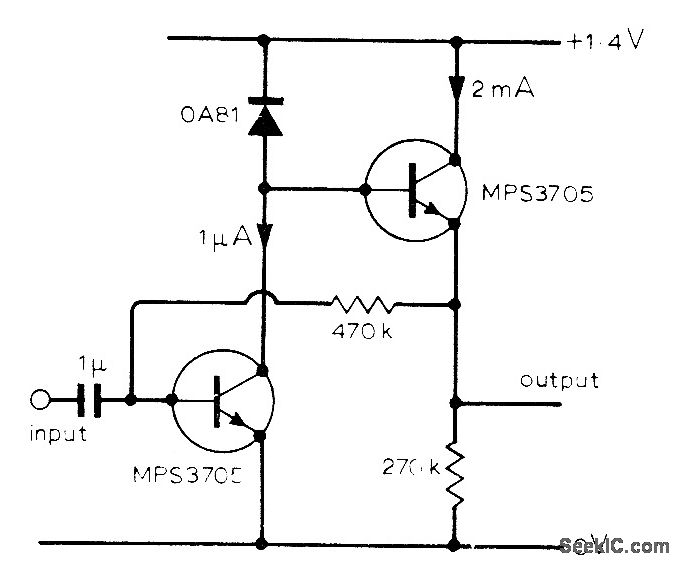

Reverse-biased germanium diode serves as voltage-independent current source for loading silicon transistors in linear amplifier having voltage gain of 50 and -3 dB bandwidth of t6-4000 Hz. In addition to low cost, circuit design permits reliable operation of reliable micro-power circuits over wide temperature range at optimum current drain. -M. G. Baker, Low-Cur-rent Source, Wireless World, April 1976, p 61.
