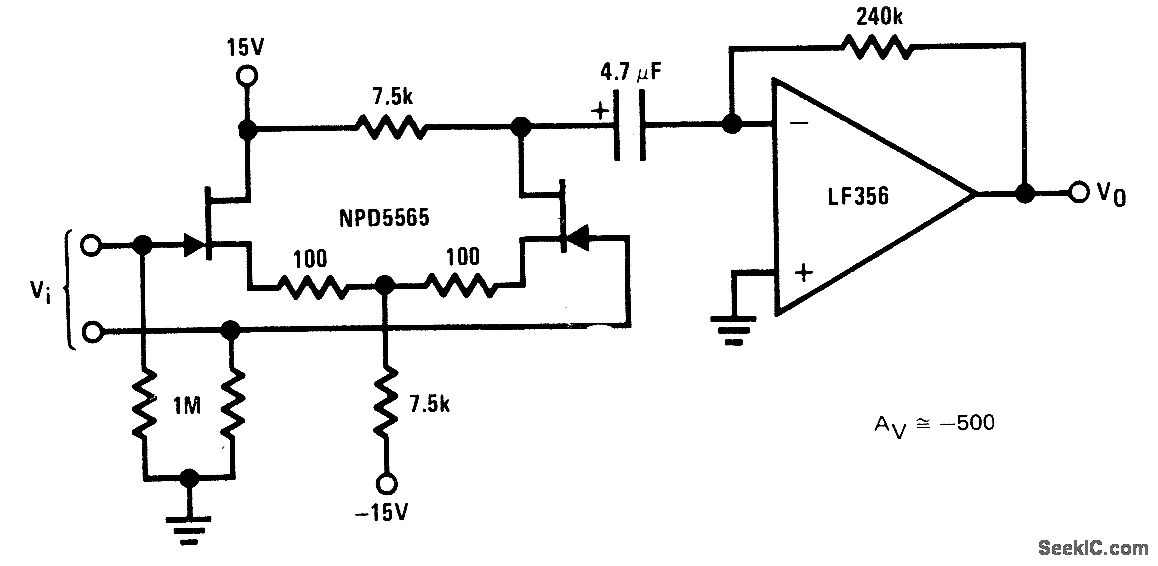

Differential connection of National NPD5565 dual JFET is used when balanced inputs and low distortion are main requirements for AC amplifier, Combination with LF356 opamp shown gives gain of about 500. Noise is somewhat higher than with single-ended JFET.- FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-17-6-19.
