DIGITAL_VACUUM_GAUGE

Published:2009/7/9 3:47:00 Author:May | From:SeekIC

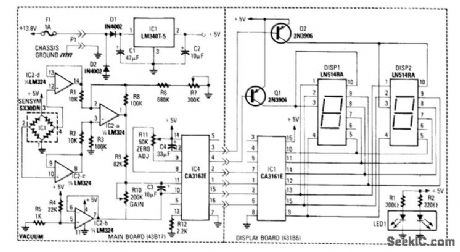

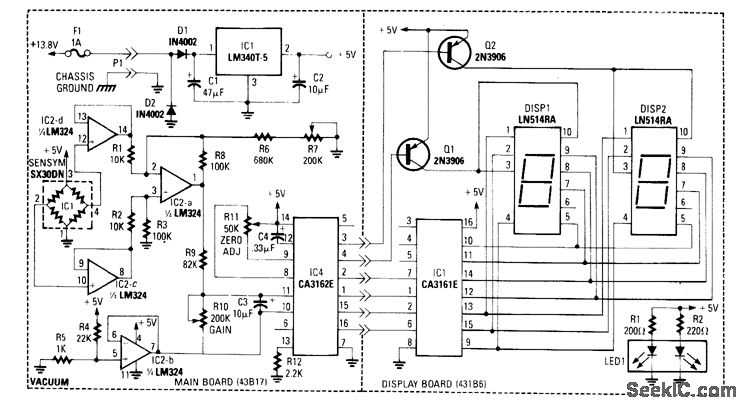

A bridge circuit is used to produce a signal from the output of vacuum sensor IC1. IC2b provides about a 0.2 V offset for IC4, the A/D converter. IC2b and d are voltage followers that drive differential amp IC2a. The output of this circuit is used to drive IC4 and IC1, the display drivers.
