DIODE_MATCHING_CIRCUIT

Published:2009/7/10 3:11:00 Author:May | From:SeekIC

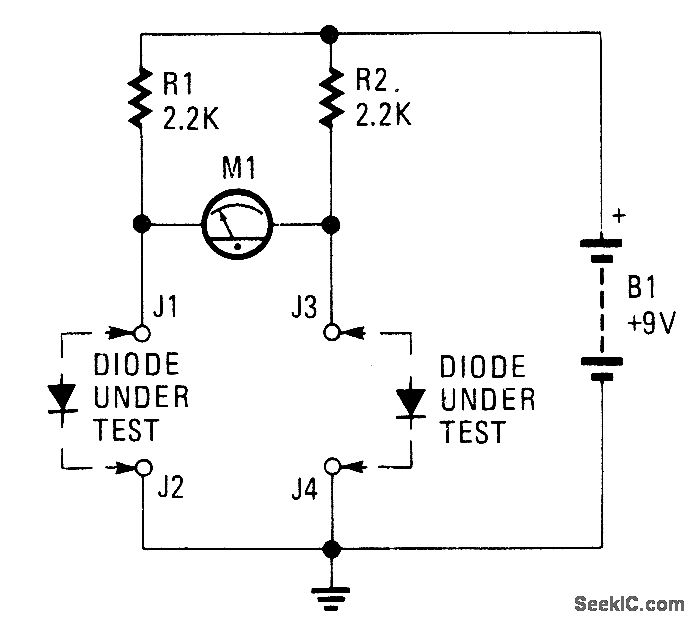

This circuit can be used to match diodes for use in circuits where such a balance is necessary (a balanced modulator, for instance).The diode matching circuit will indicate the forward-voltage drop of the two diodes in millivolts.
