DIODE_TESTER_1

Published:2009/7/21 22:16:00 Author:Jessie | From:SeekIC

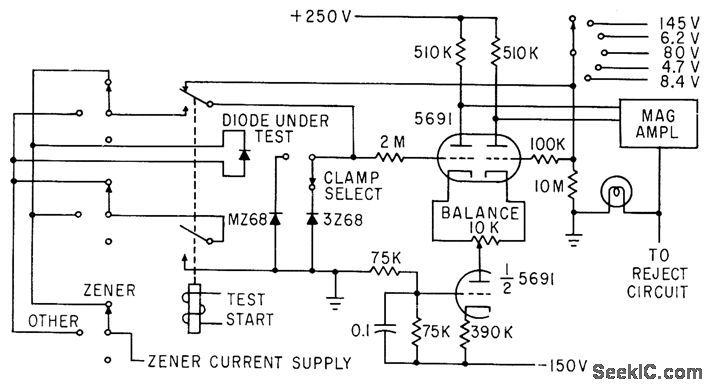

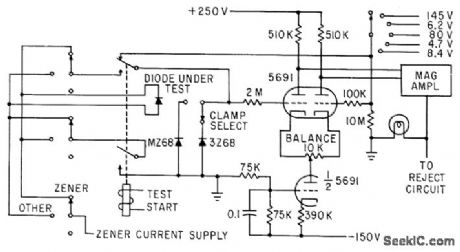

Three-triode constant-current difference amplifier triggers magnetic amplifier that drives reject mechanism of automatic zener voltage tester for diodes.-E. V. Marrott and V. S. Zucco, High-Speed Automatic Diode Tester, Electronics, 34:2, p 93-95.
