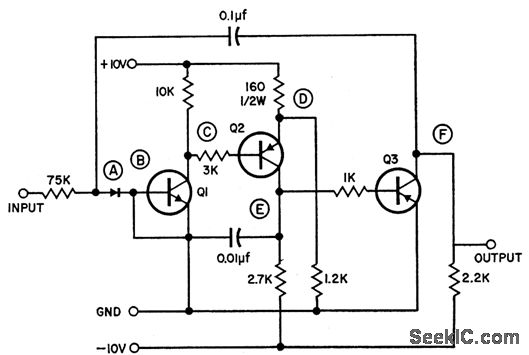

D_C_TO_AUDIO_FREQUENCY_CONVERTER

Published:2009/7/13 6:39:00 Author:May | From:SeekIC

Response is nonlinear;1.7V input voltage gives 100 cps;1.9V gives 200 cps; 2.25V gives 400 cps;10V gives 2,000 cps.Output waveform approximates rectangular shape.-D.Busby,Jr.DC to frequency Converter,EEE,10:11,P31.
