D_C_TO_D_C

Published:2009/7/13 6:00:00 Author:May | From:SeekIC

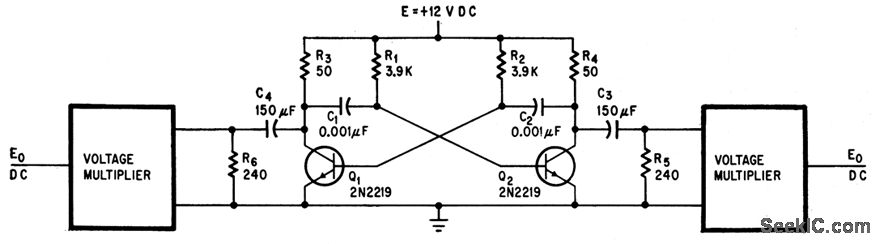

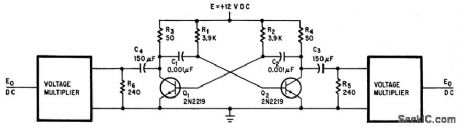

Free-running multivibrator (250 kc) generates unidirectional square waves having amplitude of d-c input voltage. R-C circuit at output blocks average value of unidirectional pulse,and standard diode-capacitor voltage multiplier boosts output voltage to desired new value.-A. J. Durocher, D.c Voltage Converter Needs No Transforme, Electronics, 37:28, p 64-65.
