D_C_TO_D_C_VOLTAGE_BOOSTER

Published:2009-7-13 5:46:00 Author:May | From:SeekIC

2N699, FD400, 1N3020, 1N4003, 1N4104 request for quotation
Click here to send inquiry

You can post buying lead, and our suppliers will quote via our online message system or other channels soon.

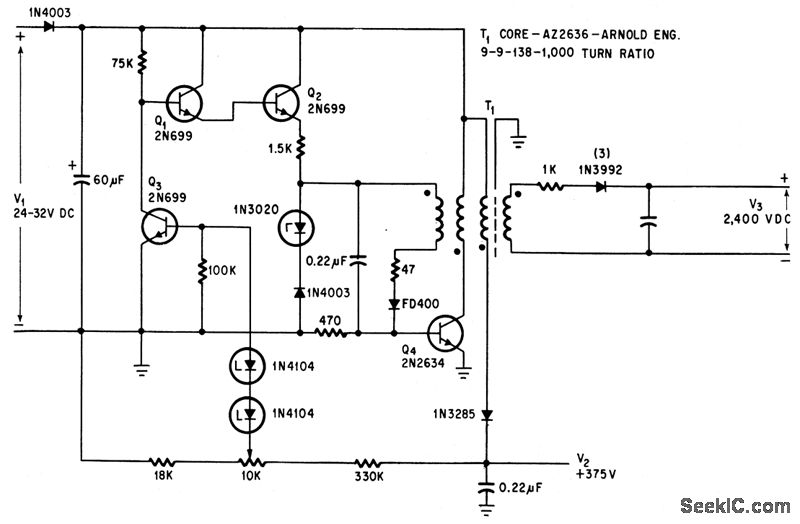

Depends on alternate storing and retrieving of energy from magnetic field of ringing choke. Uses blocking oscillator Q1 to chop input signal.Darlington pair Q1-Q2 provides high input impedance. Q3 is regulating transistor, and Q4 is blocking oscillator. Provides isolated 2,400 v output and 375V output.-J. F.Howell, Ringing Choke Simplifies D-C to D-C Conversion, Electronics, 39:8, p90-92.
