10_MHz_WITH_30_dB_GAIN

Published:2009/6/25 22:42:00 Author:May | From:SeekIC

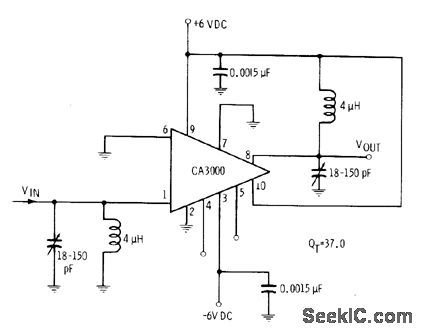

CA3000 IC is operated as RF amplifier with single-ended inputand output, With appropriate tuned circuits, amplifier performs well up to 30MHz，－E.M.Noll,″Linear IC Principles,Experiments, and Projects、″Howard W.Sams.Indianapolis、IN,1974、p91-92
