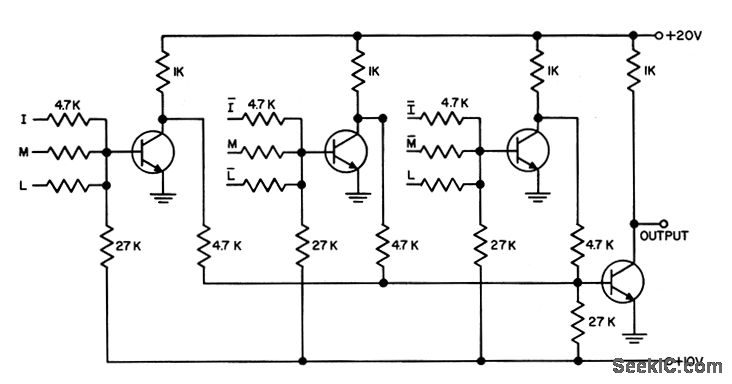

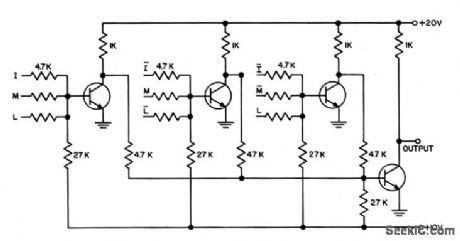

AND_GATE

Published:2009/7/16 2:17:00 Author:Jessie | From:SeekIC

Uses nor logic with inversion.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 179.
