BEAM_SPLITTER_FOR_OSCILLOSCOPE

Published:2009/6/26 2:27:00 Author:May | From:SeekIC

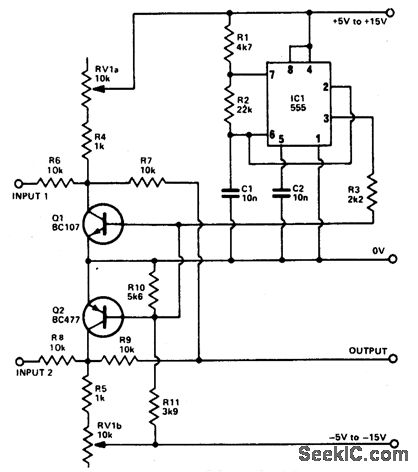

The basis of the beam splitter is a 555 timer connected as an astable multivibrator.Signals at the two inputs are alternately displayed on the oscilloscope with a clear separation between them. The output is controlled by the tandem potentiometer RV1a/b which also varies the amplitude of the traces.
