BISTABLE_MULTIVIBRATOR

Published:2009/6/24 3:38:00 Author:Jessie | From:SeekIC

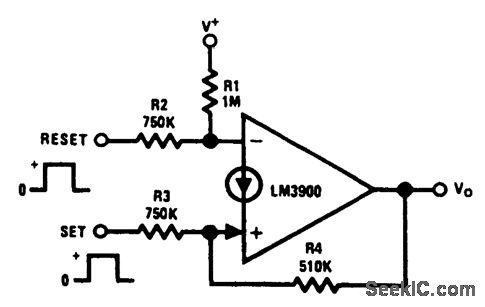

Positive feedback is provided by resistor R4, which causes the latching. A positive pulse at the set input causes the output to go high and a reset positive pulse will return the output to es-sentially 0 Vdc.
