CARRIER_CURRENT_BABY_ALERT_RECEIVER

Published:2009/6/17 2:25:00 Author:May | From:SeekIC

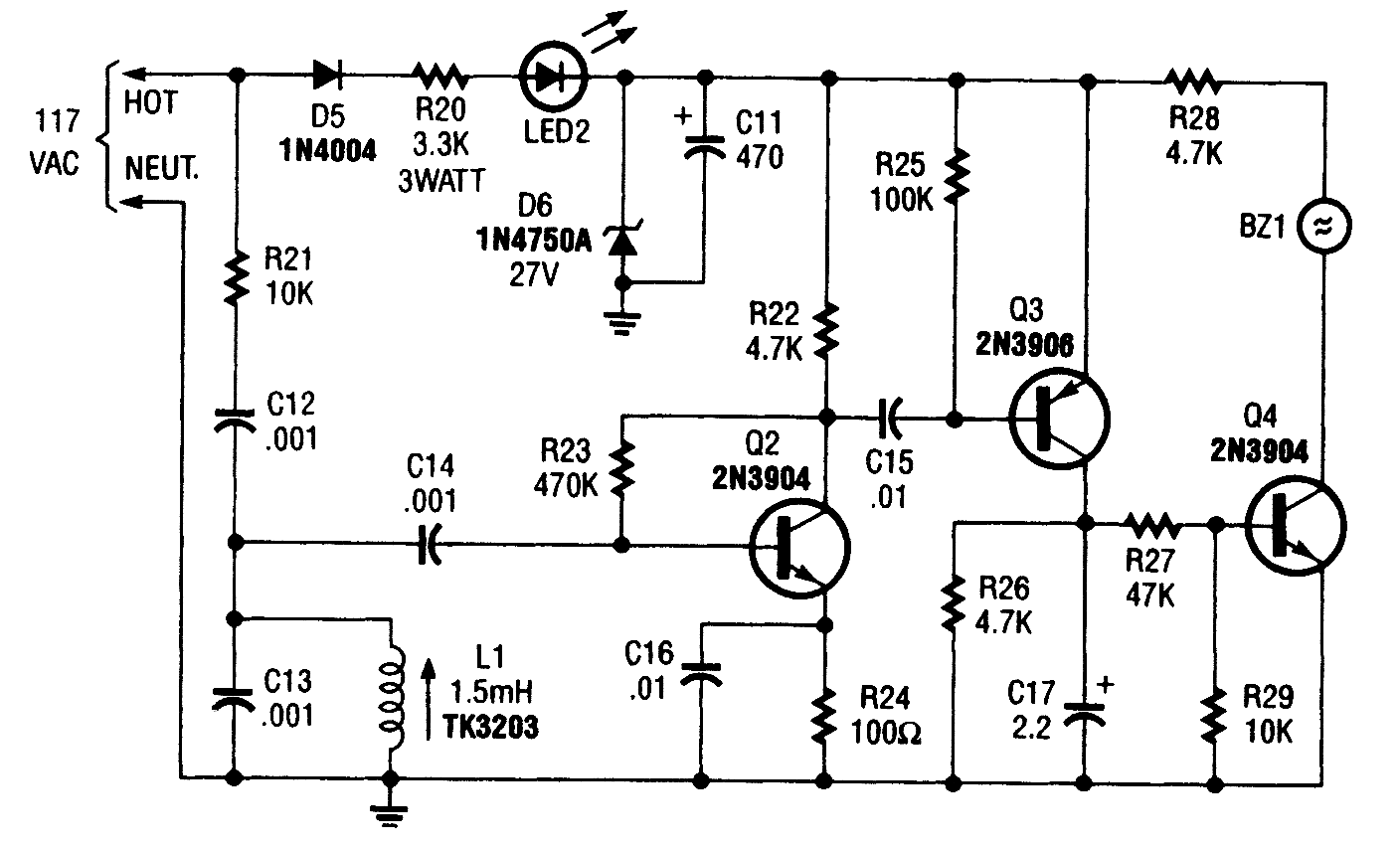

The baby-alert receiver is comprised of three transistors: Q2, which is configured as a high-gain linear amplifier; Q3, which serves as both an amplifier and detector; and Q4, which is essentially used as a switch; and a few additional components. It sounds an alarm BZ1 on receipt of a 125-kHz signal from an alarm transmitter via the 120-V power lines.
