DIGITALLY_SELECTABLE_GAIN

Published:2009/7/14 2:59:00 Author:May | From:SeekIC

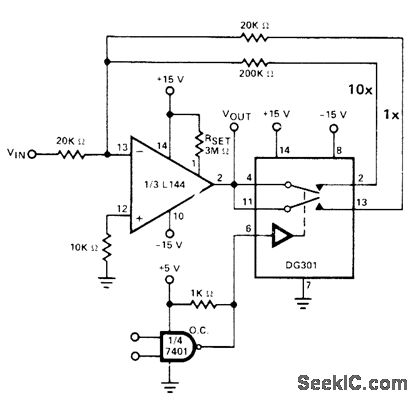

TTL controls operation of DG301 low-power analog switch at output of inverting opamp. Low logic gives gain of 1, and high logic gives gain of 10.- Analog Switches and Their Applications, Siliconix, Santa Clara, CA, 1976, p 7-90.
