DIGITAL_THERMOMETER

Published:2009/6/26 1:41:00 Author:May | From:SeekIC

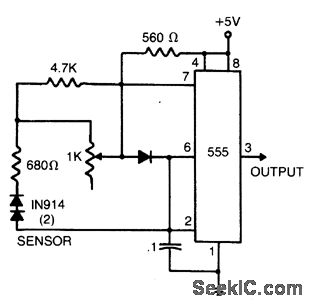

The sensor consists of two series-connected 1N914s, part of the circuit of a 555 multivibrator. Wired as shown, the output pulse rate is proportional to the temperature of the diodes. This output is fed to a simple frequency-counting circuit.
