Digital Potentiometers X9511 circuit diagram

Published:2011/9/16 0:50:00 Author:Rebekka | Keyword: Digital Potentiometers | From:SeekIC

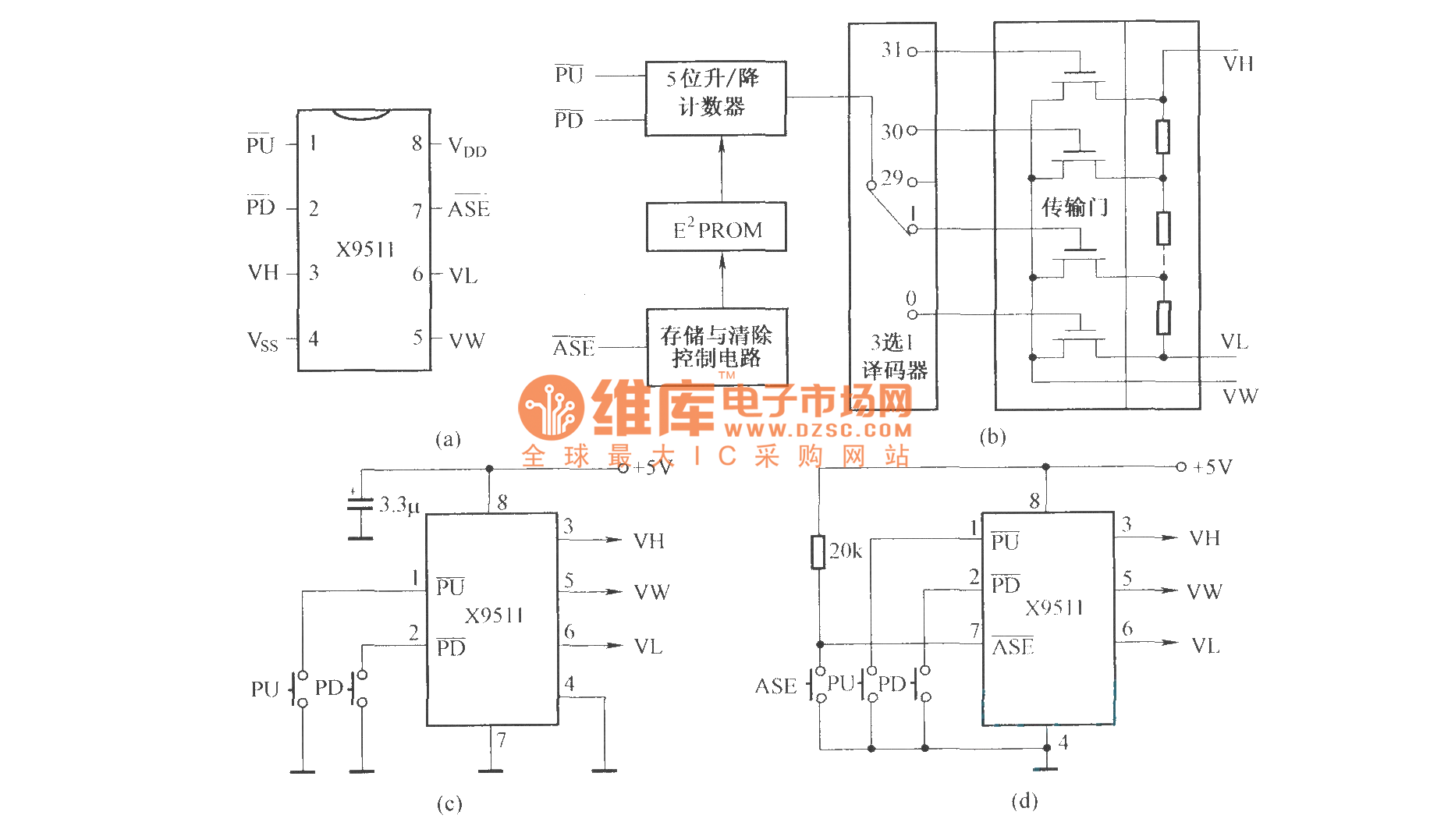

X9511 is a of non-volatile Digital Potentiometer with digital integrated circuit manufacturing process. Its internal binary counter is composed of five binary counter, five-bit rewritten read-only memory (that E2PROM), storage and clear control circuit, thirty-two selected one decoder circuit, transmission gate and resistor arrays and other components. Pin and functionare shown as above.
