Digital displaying photoelectric counter circuit diagram

Published:2011/9/26 21:50:00 Author:Rebekka | Keyword: Digital displaying , photoelectric counter | From:SeekIC

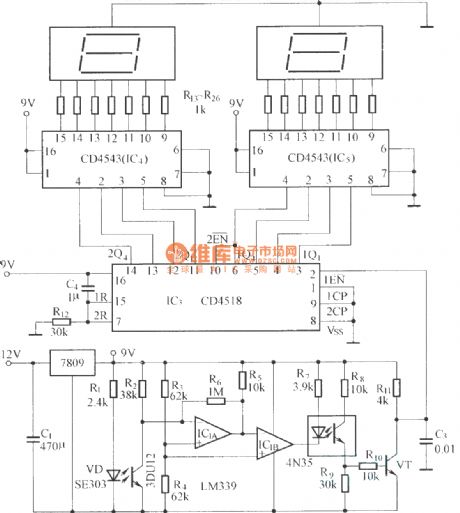

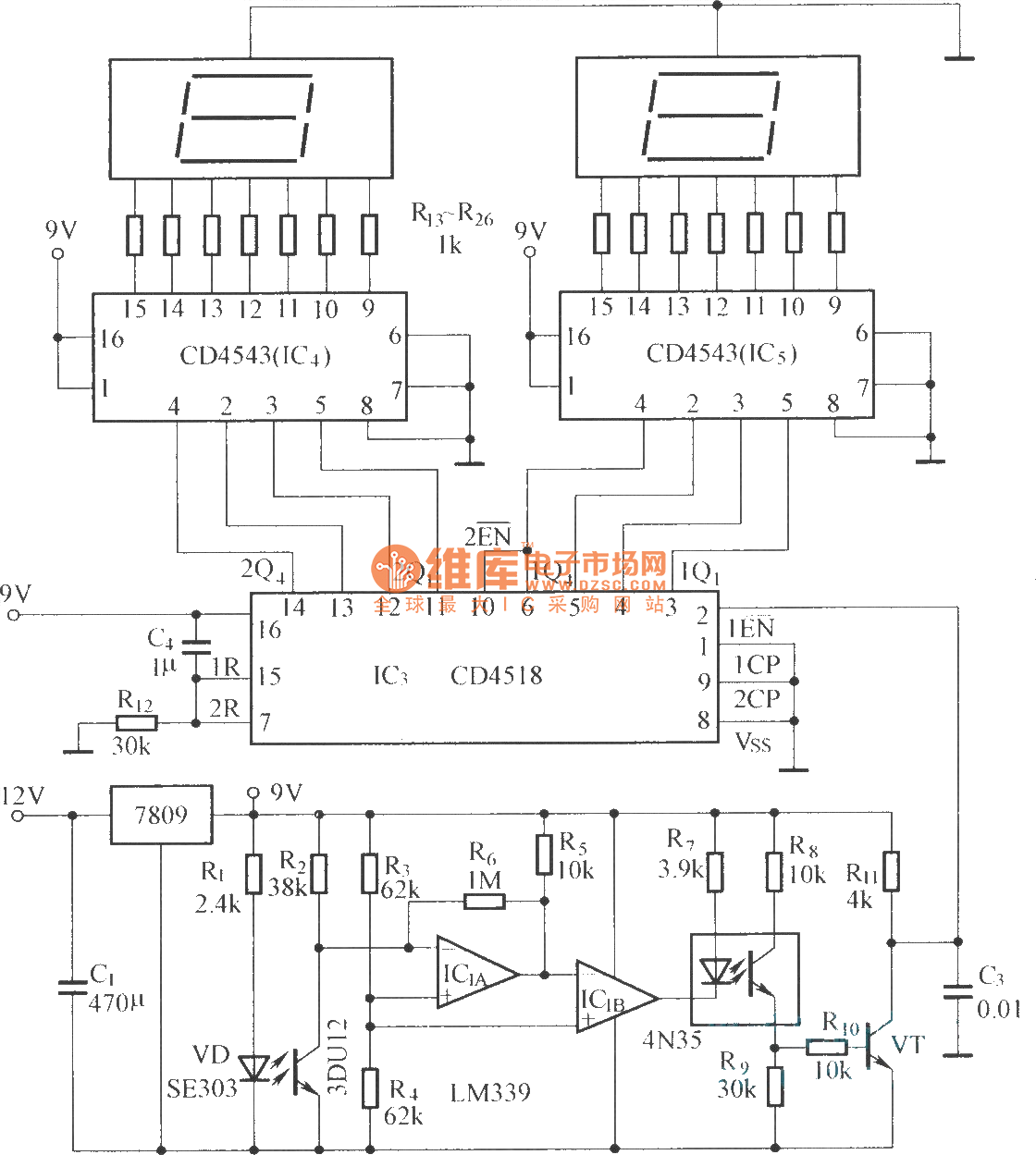

The circuit has optical input circuit (VD, 3DU12), pulse forming circuit (IC1A, IC1B form the voltage comparator; optical coupler; transistor switching circuit) and counting and display circuit.
