FM_LIGHT_BEAM_RECEIVER

Published:2009/6/16 23:51:00 Author:May | From:SeekIC

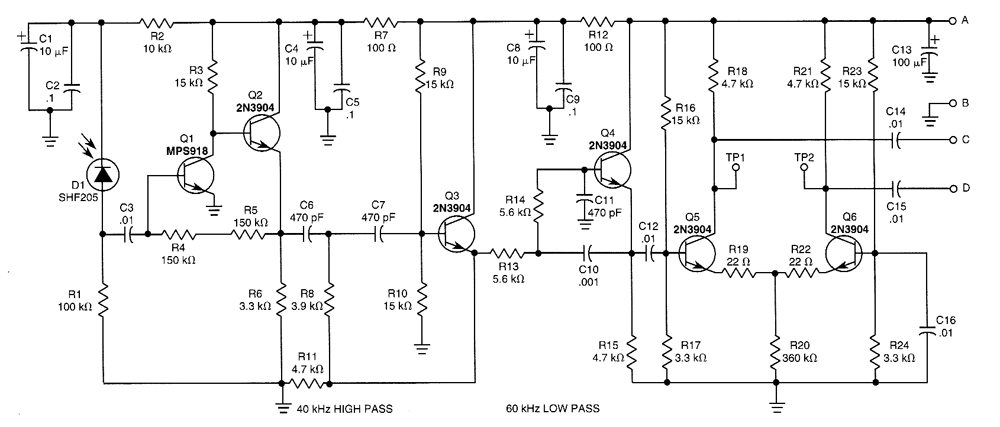

This receiver will pick up IR or light beams that are frequency modulated on a 50-kHz carrier Q2/Q1/Q3/Q4 from an active filter and amplifier and differential amp Q5/Q6 provide more gain.
