INVERSE_SCALER

Published:2009/6/25 21:25:00 Author:May | From:SeekIC

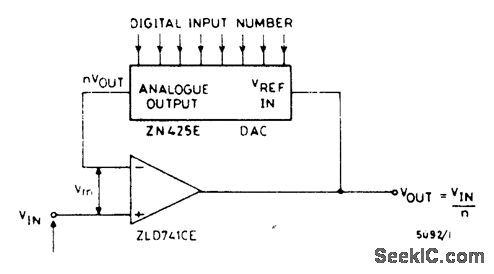

If a DAC is operated in the feedback loop of an operational amplifier，then the amplifiergain is inversely proportional to the input digital number or code to the DAC，The version giving scaling inversely proportional to posltive voltage is shown.
