LOAD_SENSING_TRIGGER

Published:2009/6/17 3:18:00 Author:May | From:SeekIC

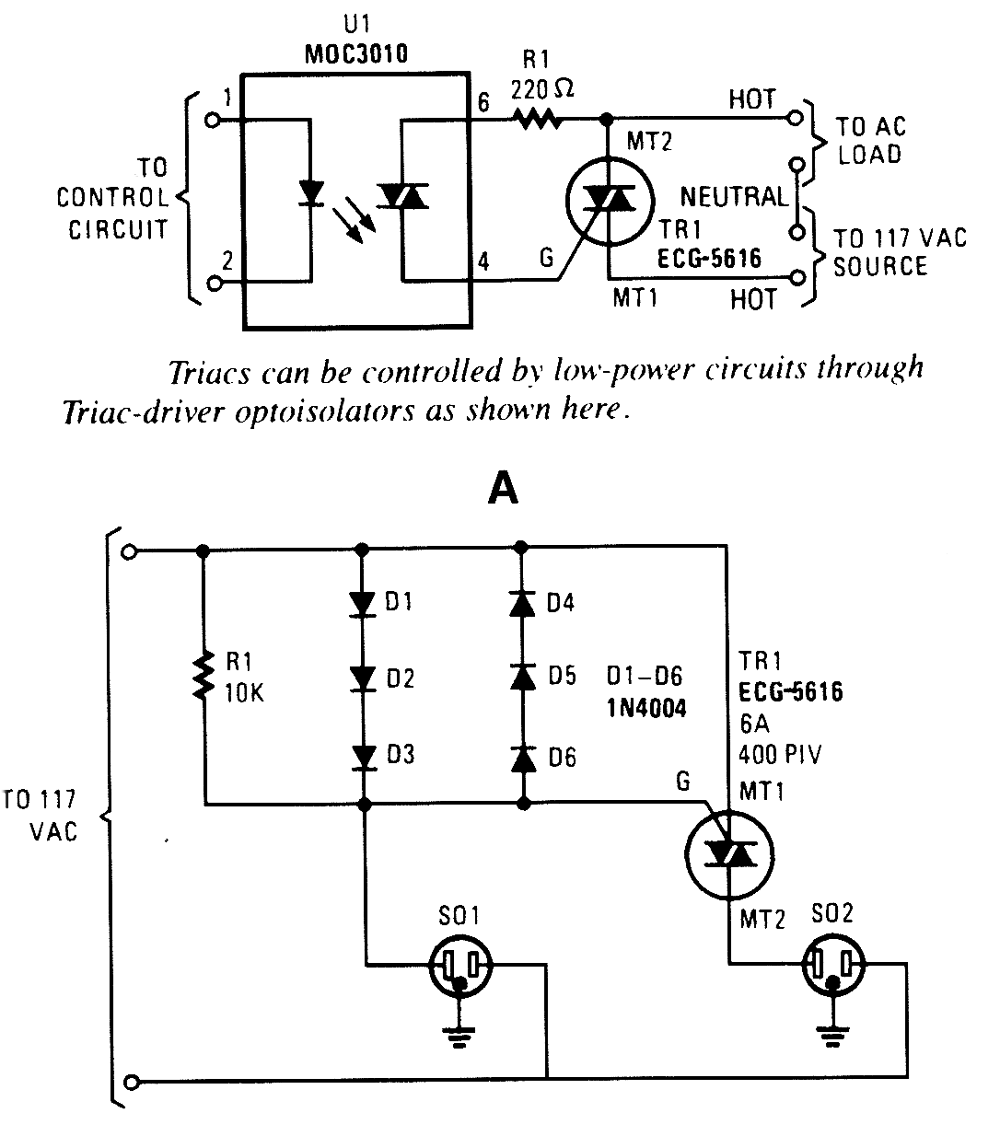

A device plugged into S01 causes a voltage-limited gate trigger for triac TR1, and causes power to be applied to SC2.
