MC14433-A/D Converting Integrated Circuit Diagram

Published:2011/5/21 21:46:00 Author:leo | Keyword: MC14433-A/D Converting Integrated Circuit Diagram | From:SeekIC

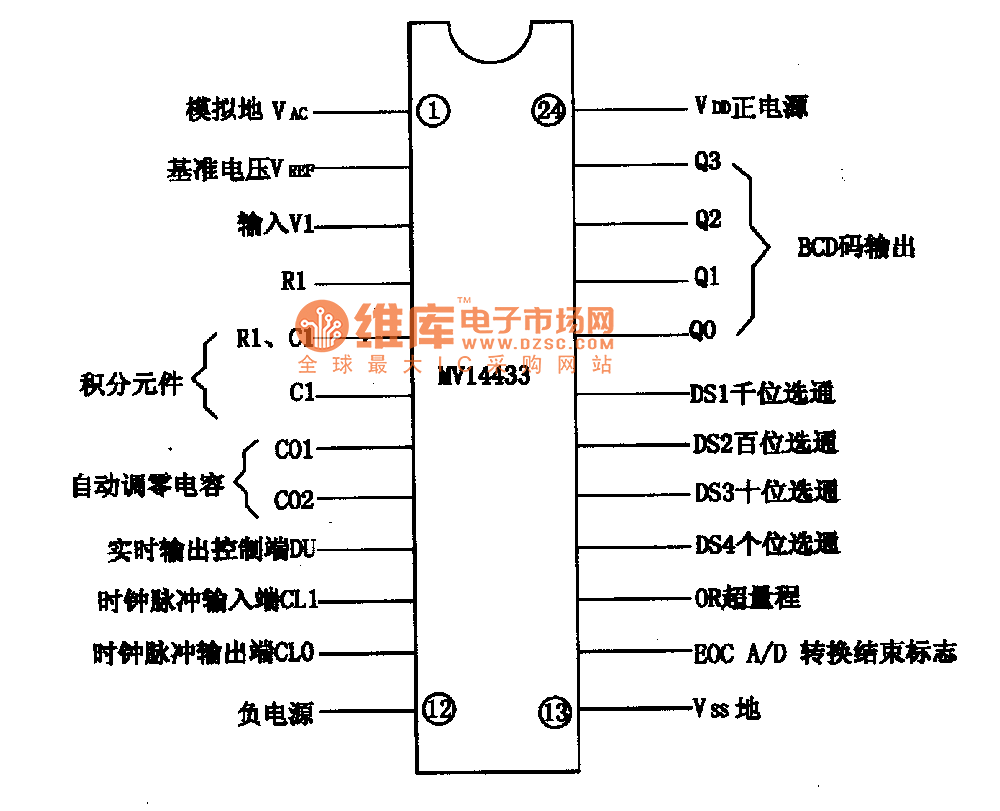

MC14433 is a kind of A/D converting integrated circuit produced by Motorola in USA which is widely applied in the multimeter that has a LED whose automatic range can show 3 1/2. 1.Function features:MC14433 contains a BCD code generating circuit, DS1-DS4 gate circuit of ones, tens, hundreds and thousands, A/D converting circuit, automatic zero set control circuit, voltage circuit of the base power supply as well as other related circuits. 2.Pins function and dataThe integrated circuit MC14433 adopts 24-pin dual line package. The arrangement and functions of its pins are as what is shown in the picture.
