PHOTO_STROBE_SLAVE_TRIGGER

Published:2009/6/24 23:14:00 Author:Jessie | From:SeekIC

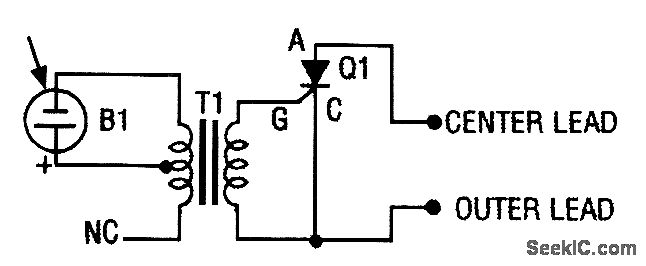

The photo strobe slave trigger circuit uses a solar cell and an SCR to flash any strobe when you trigger your master strobe. The tiny solar cell produces a vet'y small voltage when light falls on its surface.
