SIGNAL_TRACER

Published:2009/6/24 21:13:00 Author:Jessie | From:SeekIC

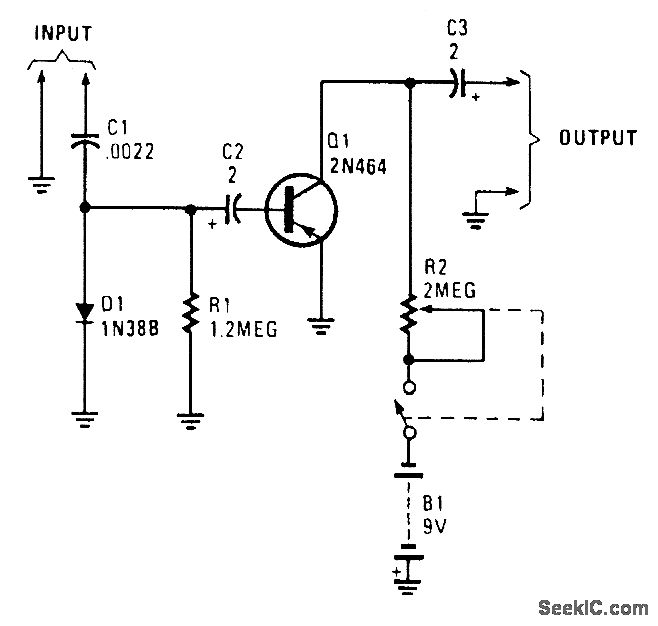

This circuit uses a simple detector-audio am-plifier. The output can be connected to head-phones or another audio amplifier.
