SUMMING_SCALING_VIDEO

Published:2009/6/24 23:31:00 Author:May | From:SeekIC

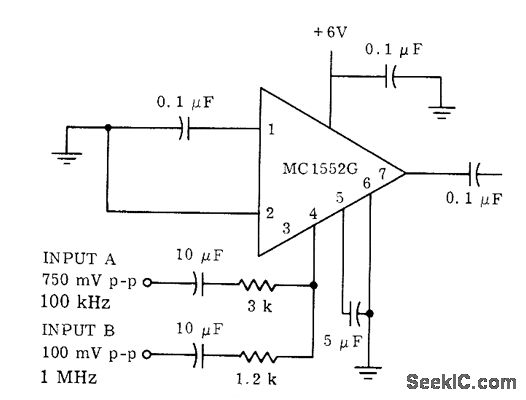

With Motorola MC1552G video amplifier connected as shown, summation of input signal currents is accom-plished at pin 4 through input resistors whose values arechosen to give desired scale factor.- A Wide Band Monolithic Video Amplifier, Mo-torola, Phoenix, AZ, 1973, AN-404, p 9.
