TWISTED_PAIR_VIDEO_DRIVER_RECEIVER_CIRCUIT

Published:2009/6/24 21:51:00 Author:May | From:SeekIC

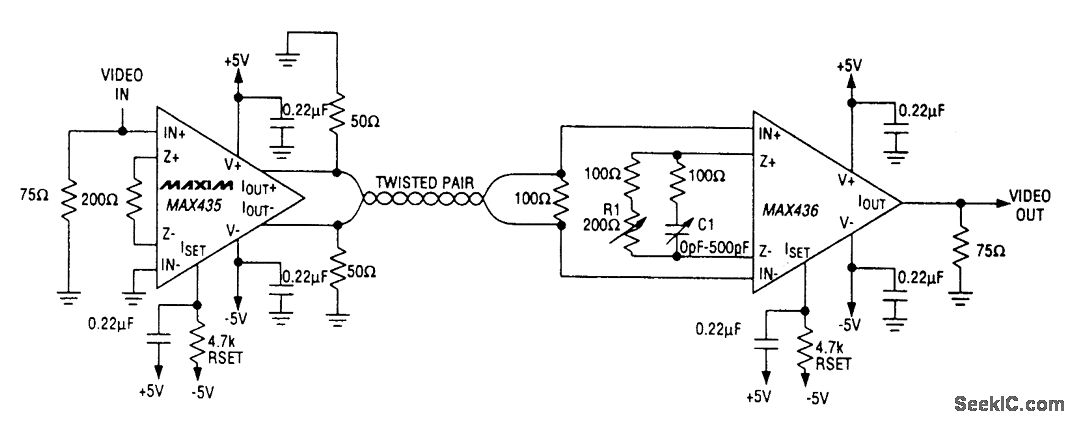

This circuit should be useful where a twisted-pair video line is to be used. R1 is adjusted for proper gain (monitor brightness and contrast) and C1 is adjusted for best color.
