lO_MHz_COAXIAL_LINE_DRIVER

Published:2009/6/26 4:22:00 Author:May | From:SeekIC

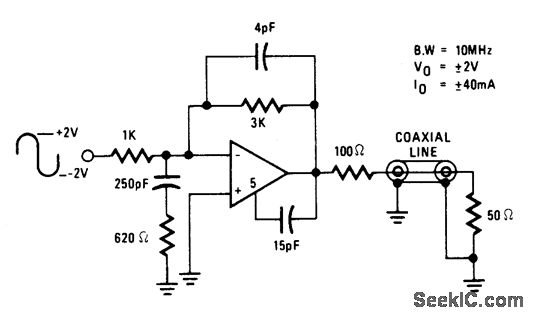

The circuit will find excellent usage in high frequency line driving systems that re-quire wide-power bandwidths at high output current levels. (IC = HA2530) The bandwidth of the circuit is limited only by the single pole response of the feedback components; namely f(-3 dB) = 1/2 πRfCf. As such, the response is flat with no peaking and yields minimum distortion.
