Digital Up-Down Counter with CD40110BE

Published:2012/9/16 20:52:00 Author:Ecco | Keyword: Digital Up-Down Counter | From:SeekIC

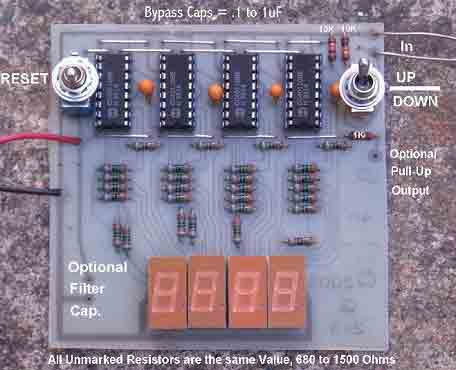

This circuit board design uses a CD40110BE, and Up/Down Counter ICs. The CD40110BE is a dual-clocked up/down counter with a special preconditioning circuit that allows the counter to be clocked, via posting going inputs, up or down regardless of the state or timing of the other clock line.
