Digital_power_monitor_with_line_isolation

Published:2009/7/24 12:04:00 Author:Jessie | From:SeekIC

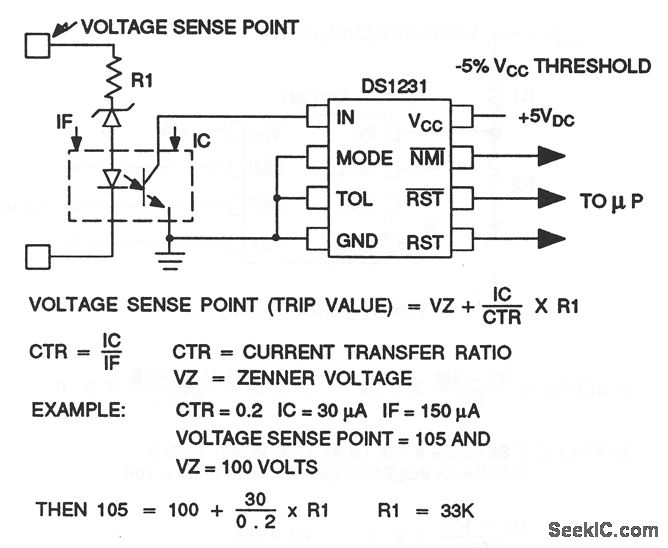

This circuit is similar to that of Fig. 6-47, except that an optoisolator (chapter 9) is used between the voltage sense point and the DS1231 to provide line isolation. Dallas Semiconductors, Product Data Book, 1992/1993, p. 10-41.
