Diode dimmer switch circuit

Published:2011/6/30 2:31:00 Author:Ecco | Keyword: Diode , dimmer, switch circuit | From:SeekIC

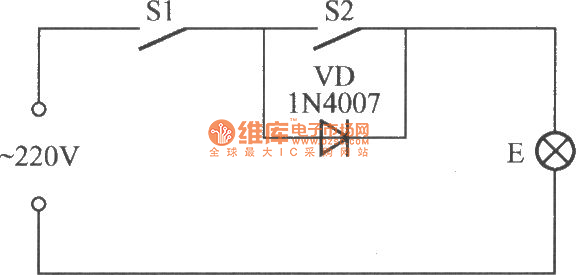

In the circuit shown as the chart, when the S1, S2 are closed, light E has normal light; S1 remains closing, S2 is open, E emits dark light; if S1 is open, the light E is off whether S2 is open or not.
