Dynamic scan display circuit

Published:2011/11/10 3:32:00 Author:Ecco | Keyword: Dynamic scan display | From:SeekIC

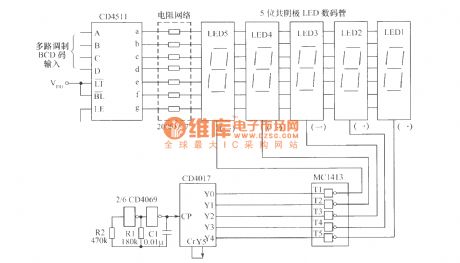

The circuit shown as the chart is thedynamic scan display circuitcomposed ofdecoder driver CD4511, beat generator CD4017, 7 roads ofDarlington drivers MC1413. LED1 ~ LED5 are five common cathode LED displays .
