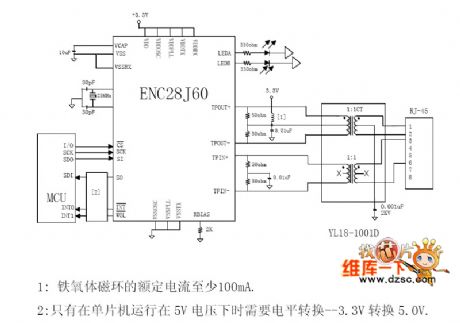

ENC28J60 network Ethernet interface circuit diagram

Published:2011/9/2 1:22:00 Author:Ecco | Keyword: network, Ethernet interface | From:SeekIC

1. The rated current of ferrite bead is 100mA. 2. Only when the microcontroller runs at 5V, the level requires to convert-3.3V to 5.0V.
