Eight AD7416 parallel circuit diagram

Published:2014/3/26 21:43:00 Author:lynne | Keyword: Eight AD7416 parallel circuit diagram, AD7416 | From:SeekIC

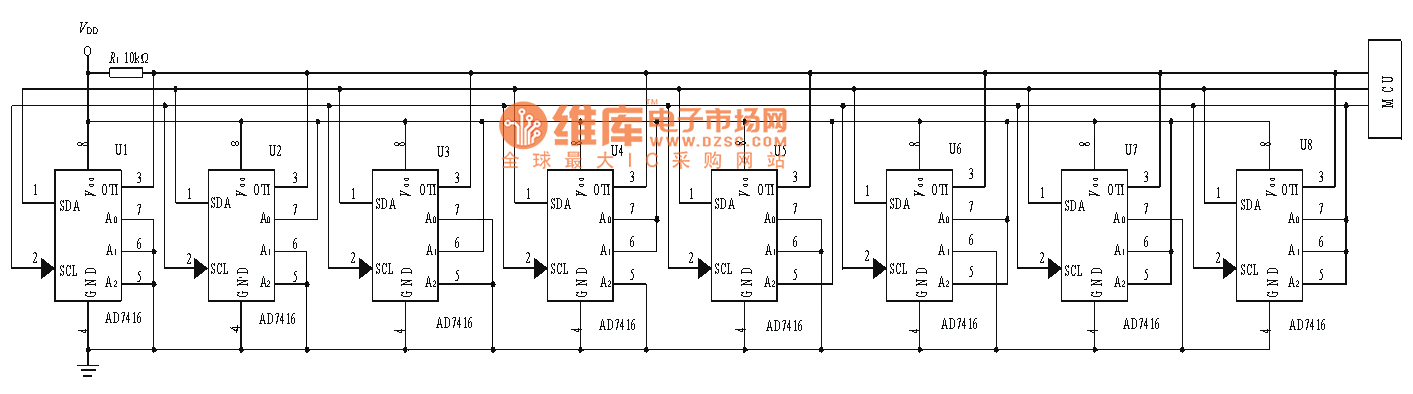

D7416 serial address low 3 can be set by the user, allowing a choice from 1001000 to 1001111 of eight addresses. 8 illustrates the AD7416 has received a serial bus system, their OTI output line to form a common interrupt request lines.
