Electric relay open phase protection circuit

Published:2011/9/14 20:36:00 Author:nelly | Keyword: Electric relay, open phase, protection | From:SeekIC

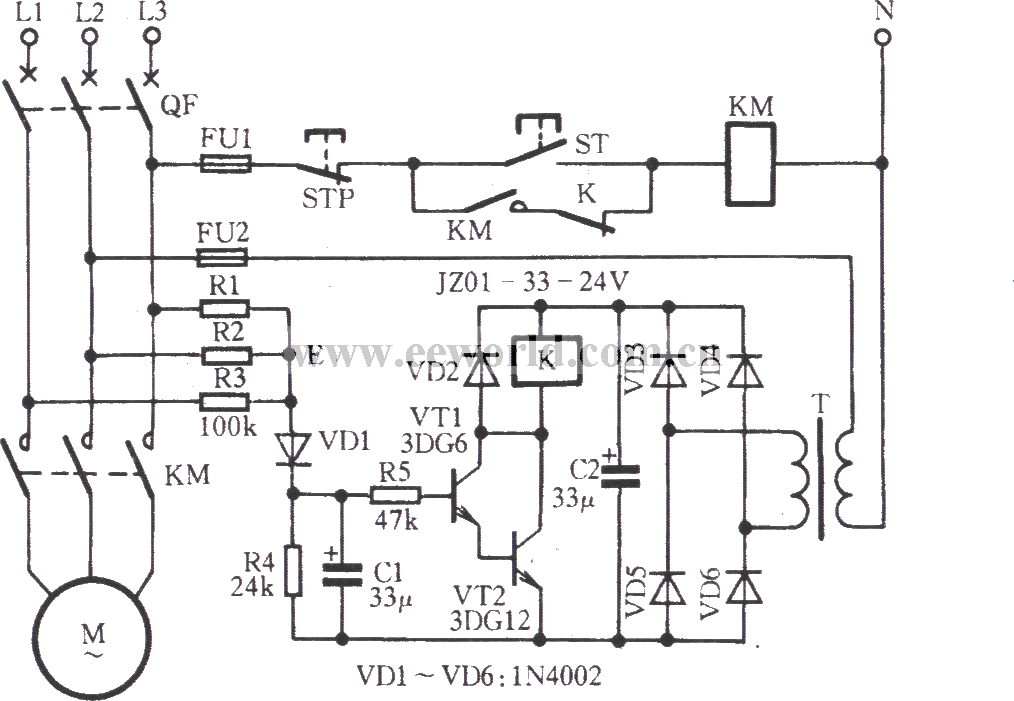

Asshowninthepicture,whenthemotorisrunningnormally,thevoltageofthemiddlepoint”E”isnothighinthethree-phaseYconnectionbalancedcircuit,sotheVD1isnotConducted,andthemultiunittubes(VT1、VT22)arecutoff.TherelayKisinthestateofrelease;afterthefaulthashappened,thepoint“E”increasestowardsthezerolinevoltage.TherectificationoftheVD1makestheemitterofmultiunittubeconduct,Kactuate.Theconstantclosepointopens,andthecontactorKMloseselectricpower.MotorMstopsturningaround.
