Electrical Current Indicator

Published:2012/9/6 20:04:00 Author:Ecco | Keyword: Electrical Current , Indicator | From:SeekIC

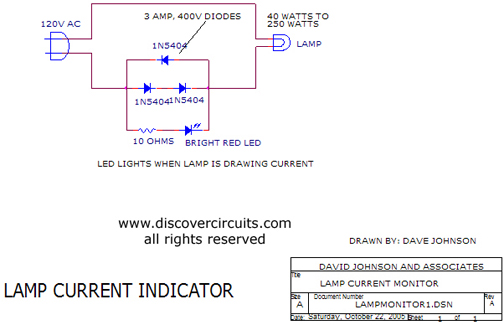

I designed this circuit as a simple current indicator for any load ranging from 40 watts to 250 watts. The circuit turns on a small LED, whenever it detects current flowing to a remote load. Source: discovercircuits
