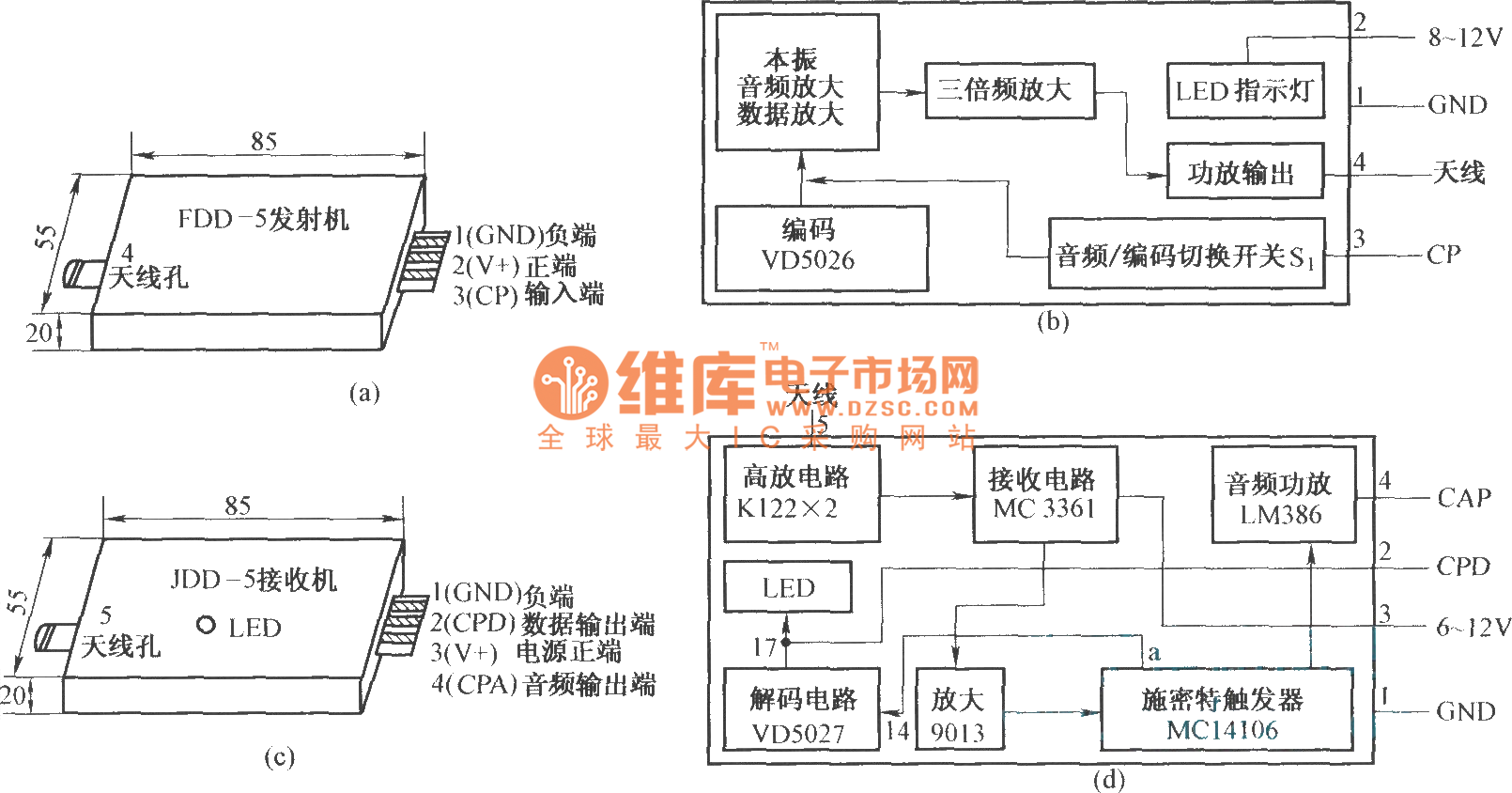

FDD-5/JDD-5 shape and internal circuit diagram

Published:2011/9/27 2:12:00 Author:Rebekka | Keyword: shape , internal circuit | From:SeekIC

Radio transmitter component FDD-5 and receiver component JDD-5are a pair of FM radio transmitter / receiver modules. The circuit can send either digitally encoded signals and it can transmit audio signals. Their appearance are the metal shell shape packaging, appearance and internal principle.
