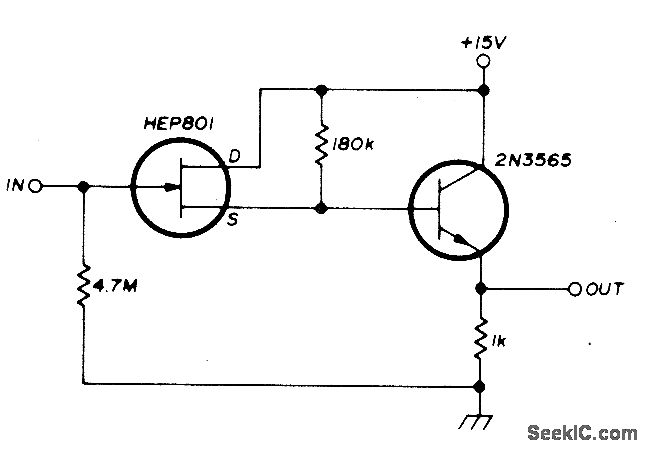

FET_BIPOLAR_DARLINGTON

Published:2009/7/9 4:37:00 Author:May | From:SeekIC

Can be used as meter interface amplifier, impedance transformer, coax driver, or relay actuator. Combination of unipolar and bipolar transistors gives desirable amplifying features of each solid-state device.-I. M. Gottlieb, A New Look at Solid-State Amplifiers, Ham Radio, Feb. 1976, p 16-19.
